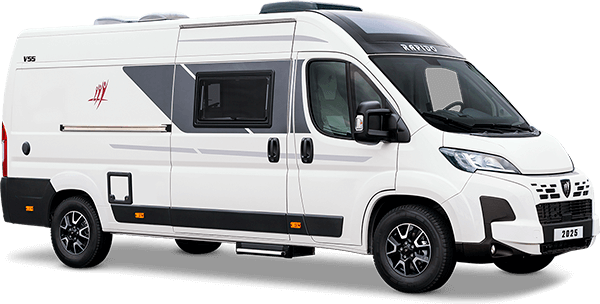

Motorhome RAPIDO V55

Base vehicle FIAT

Overall length

5,99 m

Overall width

2,05 m

Overall height

2,59 m

Engine equipment

2,3 L - 120 hp

Wheelbase

4,04 m

Download the technical guide
4 2+1 2+2** TRUMA*** 110/50 L 100 L 135 L

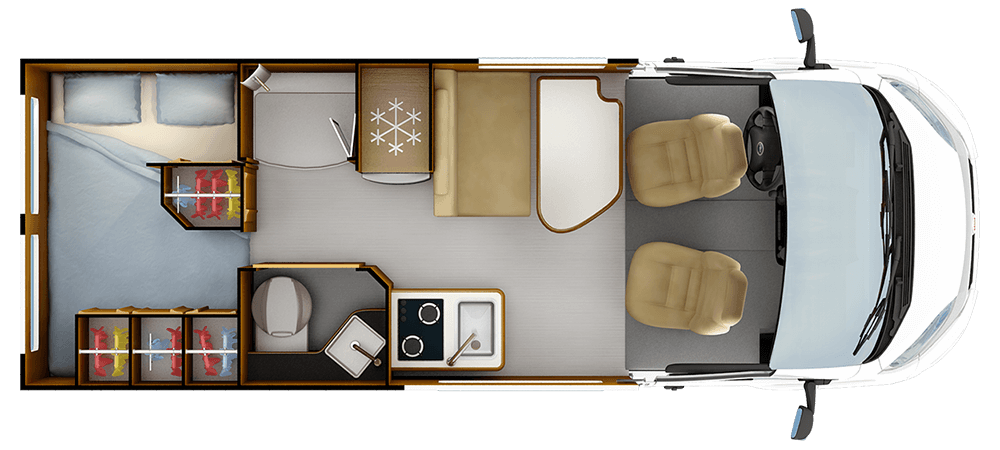

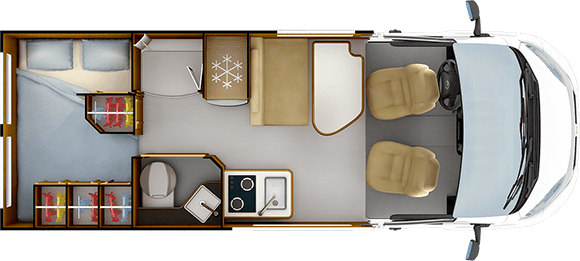

Day layout

Day layout RAPIDO V55

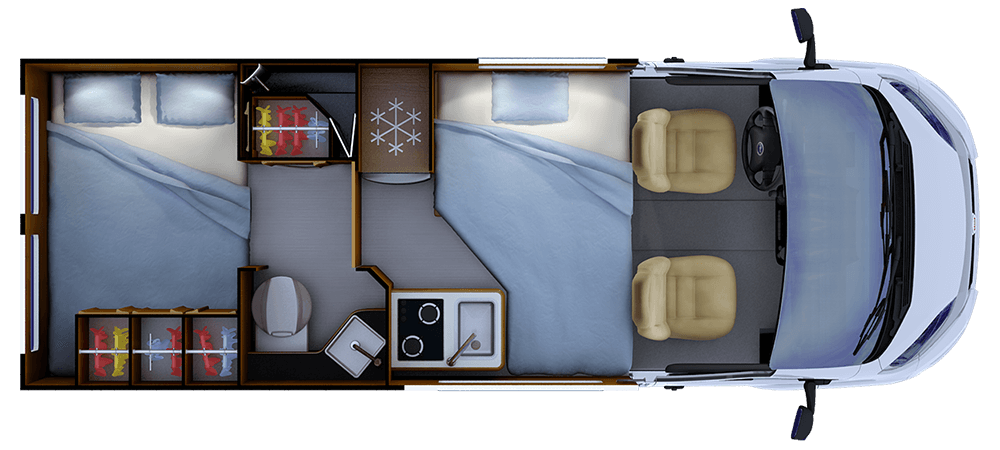

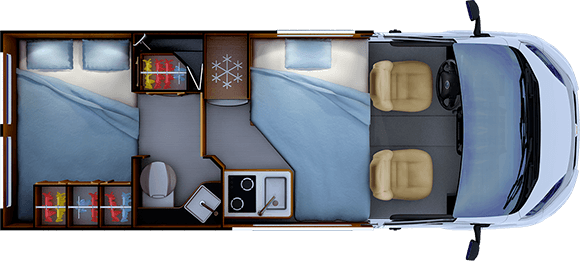

Night layout

Night layout RAPIDO V55

**Seats with seatbelts; for registered seats, please refer to the technical manual. ***Truma Combi 4 CP PLUS

MOTORHOME PLUS

4 registered seats (driving)

3 berths (2+1)

Large modular storage area to hold 2 bikes

Large lounge for 4 guests

Large 135 L AES refrigerator

Genuine separate shower/generous bathroom

Wardrobe Modul'Space®

Wardrobe at the foot of the bed

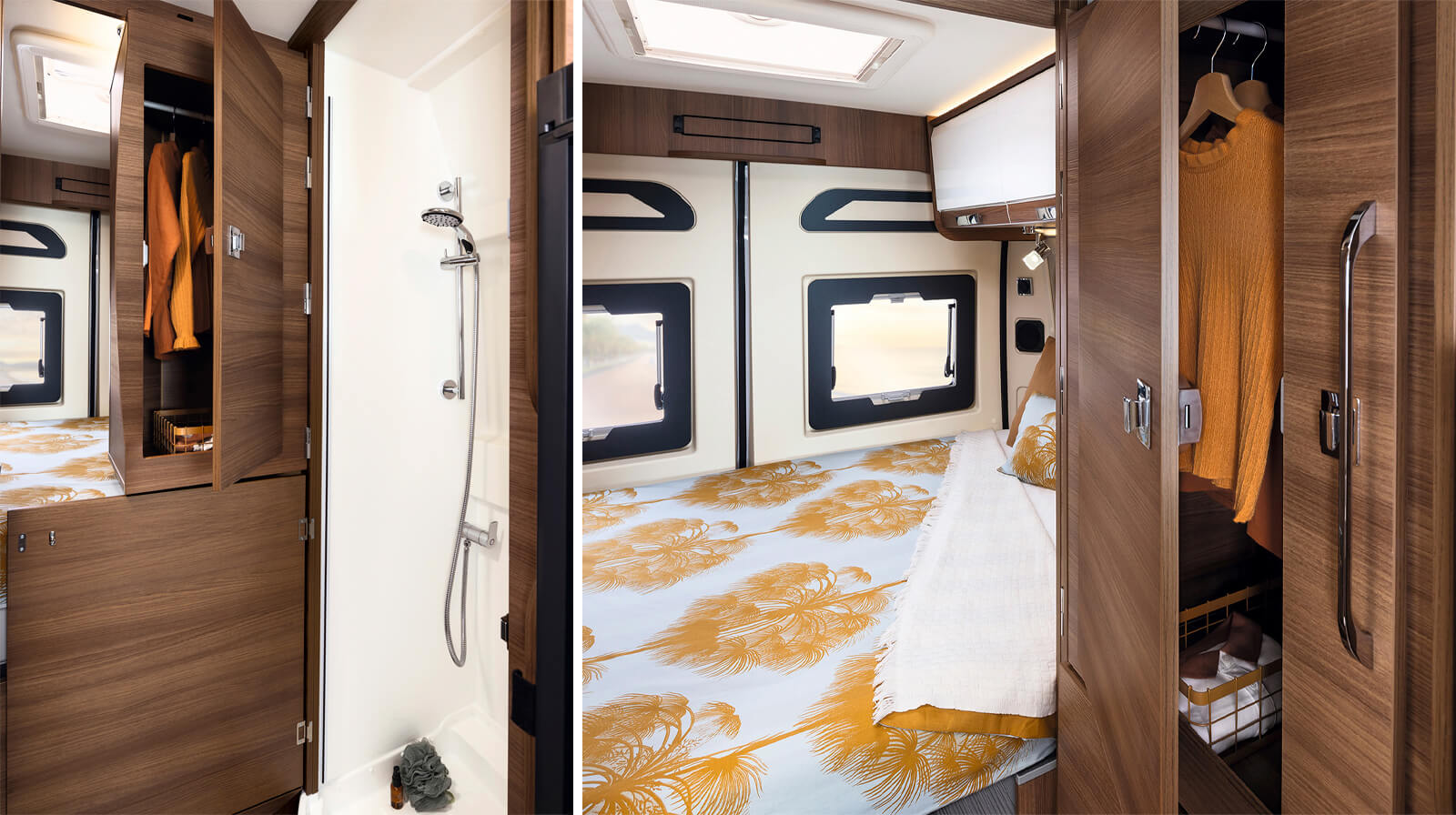

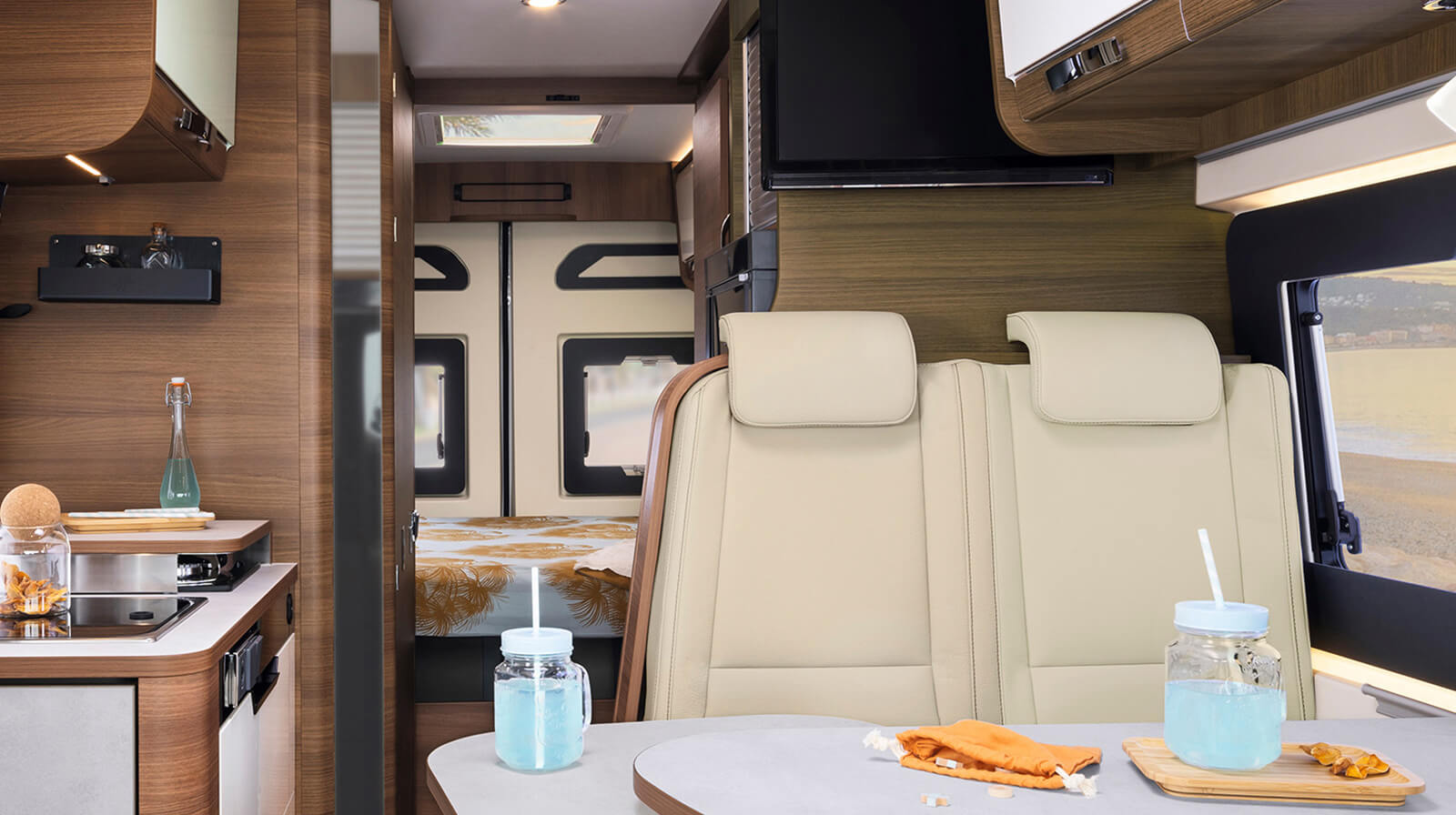

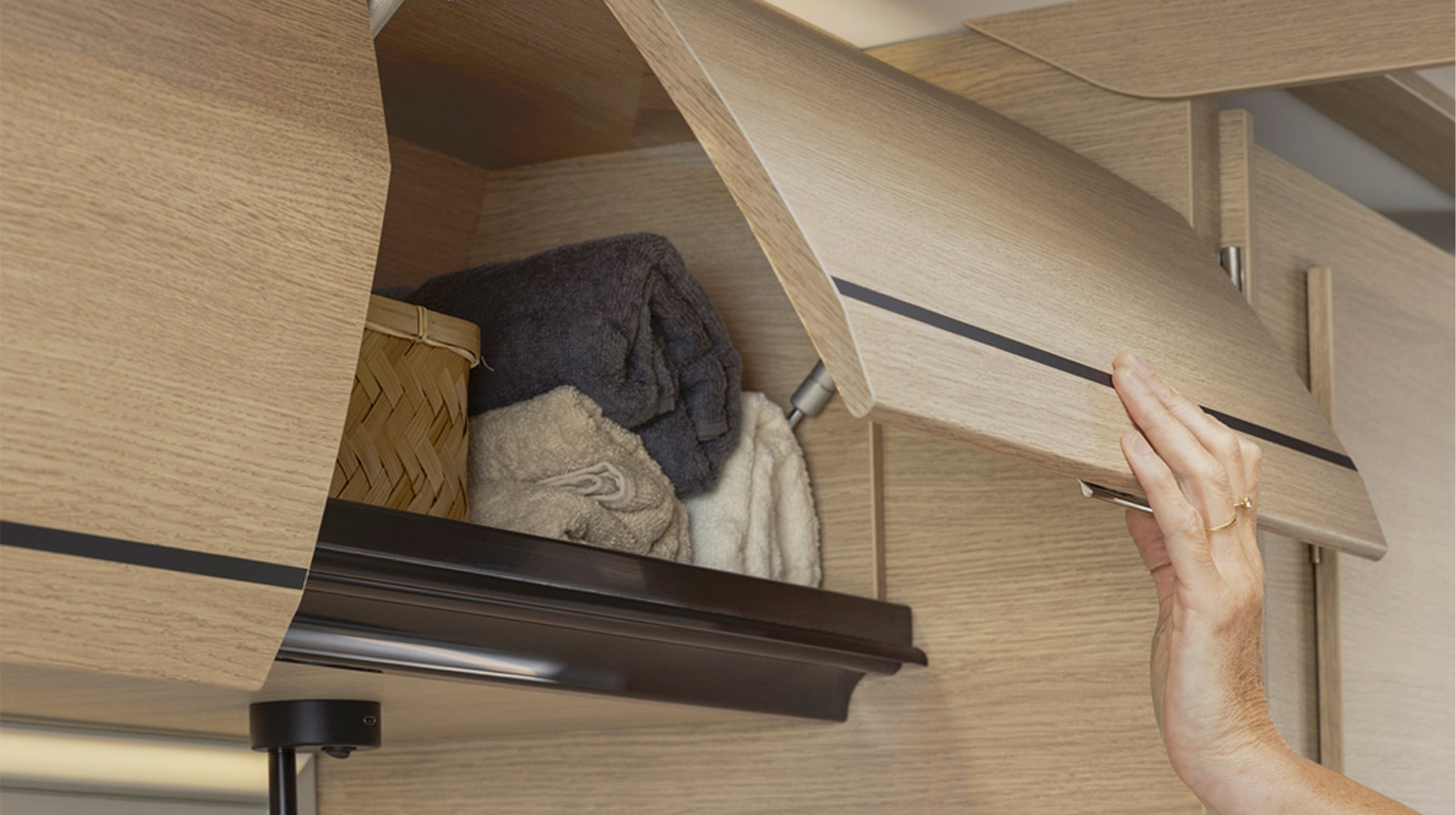

Interior photos RAPIDO Motorhome V55Interior photos RAPIDO Motorhome V55Interior photos RAPIDO Motorhome V55

CONSTRUCTION

XHP Xtrem Hybrid Protect insulation = Polyurethan and Polyether complex with aluminium sheet

Floor with Styrofoam 25 mm insulation and polyester underfloor

Moulded internal walls

Monobloc honeycomb ceiling

Ground watertight seal protecting the entrance area

Technical storage area:

     - Reinforced panels with TITAN finish

     - Sliding curtain on storage area compartment for permanent access

     - Detachable intermediate storage surface

     - Storage area with strengthened floor covering

     - Stowage rails

BODYWORK AND OPENINGS

Open space and access to cab

Midway stop on sliding side door

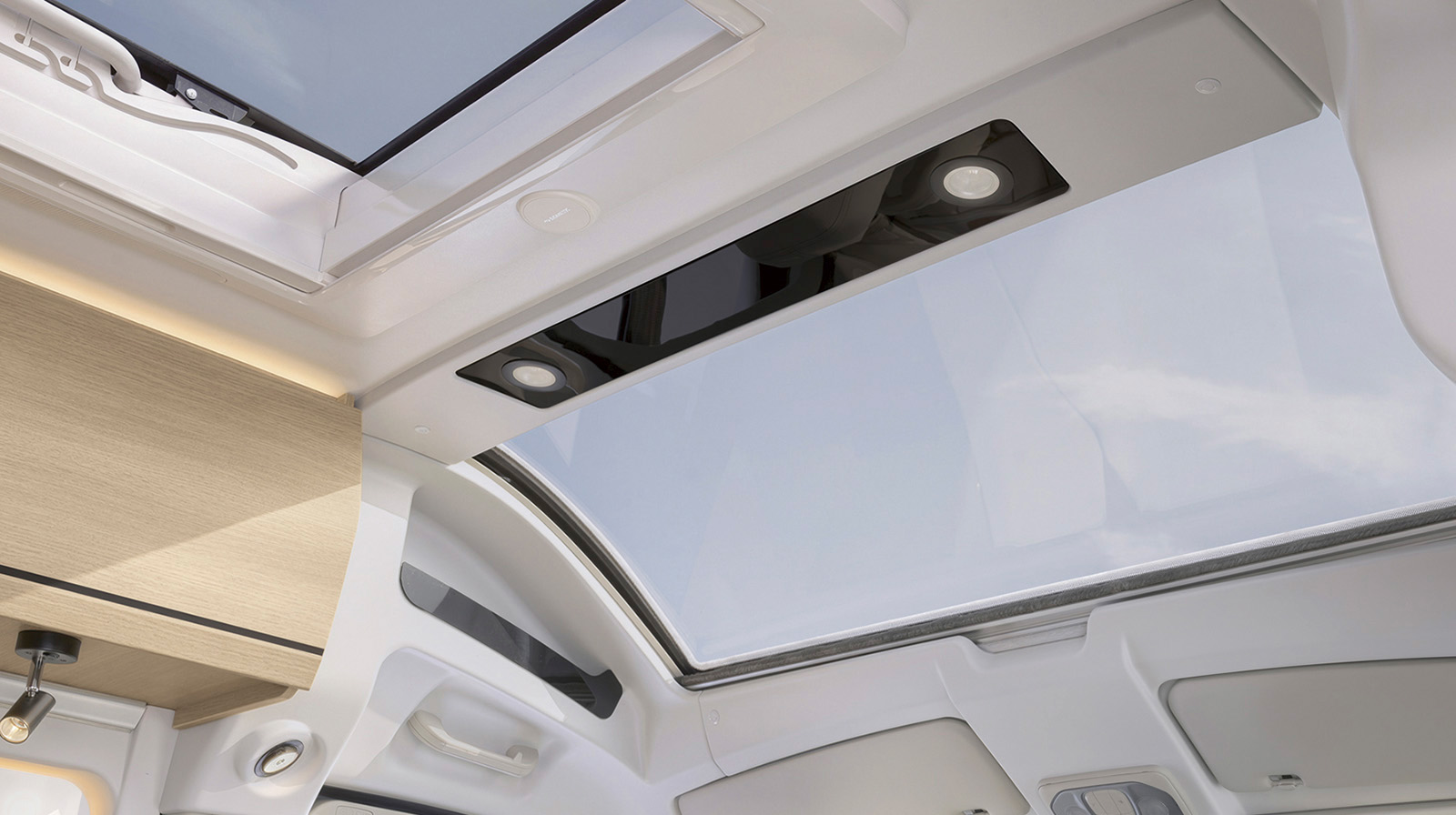

Transparent skylights with blind and flyscreen (700 x 500 model, located up front)

Side and rear windows with double glazing, polyurethane frame and inbuilt flyscreen and blinds

Full inside cladding of the side door, including handle

Side door protective gutter with LED lighting

Electric step (width = 55 cm)

HEATING

TRUMA Combi 4 heating with CP PLUS control panel

STYLE

CASTELLO furniture, bright and glossy finish with new chrome trim and door edging strip

ELEGANCE furniture, new warm, sophisticated style

Automatic indoor / outdoor LED lighting with “coming home / leaving home" feature

New laminate surface for living room table and worktop

LOUNGE

Living room window style with backlit plexiglass

Living room bench seat:

     - Ultra comfortable upholstery shape

     - Depth-adjustable seat

     - Height-adjustable headrest

     - Wooden edging strip

     - Side backlighting

     - Storage under dinette table

Table: new DUO 3D CASTELLO veneer edges / ELEGANCE

Table with extension

TV cabling and bracket

KITCHEN

Kitchen unit: new DUO 3D CASTELLO veneer edges / ELEGANCE

Refrigerator with freezer

New spice rack

Kitchen unit:

     - Backlit along the bottom

     - New generous smooth stainless steel sink with glossy black glass cover

     - Chromed brass kitchen tap with ceramic cartridge

     - New overhanging, screen printed tempered glass, 2-hob stove with dual function cover: splashback and worktop extension

     - Kitchen worktop extension

     - Inbuilt rubbish bin

     - Inbuilt wine rack

     - Storage alcove

Drawer storage with cutlery/pot spaces and central locking

NEW BATHROOM

Rectangular white basin

High storage unit with mirror doors

Storage alcoves

New laminate basin countertop finish

Towel rails

Cup holder and cup

LED lighting

Toilet with removable tank

Laminate surface on shower walls

BEDROOM

Permanent bed with aluminium base frame and active slats

Permanent bed with BULTEX® foam mattress

Permanent bed mattress in high quality stretch fabric with braid trim finishing

Bedroom speaker

Rear lintel storage

BASE VEHICLE FITTINGS

4 registered seats (driving)

ABS braking

Power steering

Driver's airbag

Electric defrosting side mirrors

Central locks on cab and side doors with remote control

Spare wheel

CAB FITTINGS

Cab blinds (windshield and cab side windows)

Electric cab windows

Independent car radio operation

Carpeted floor in cab

New TOUCH reading spotlight in cab

LIVING AREA FITTINGS

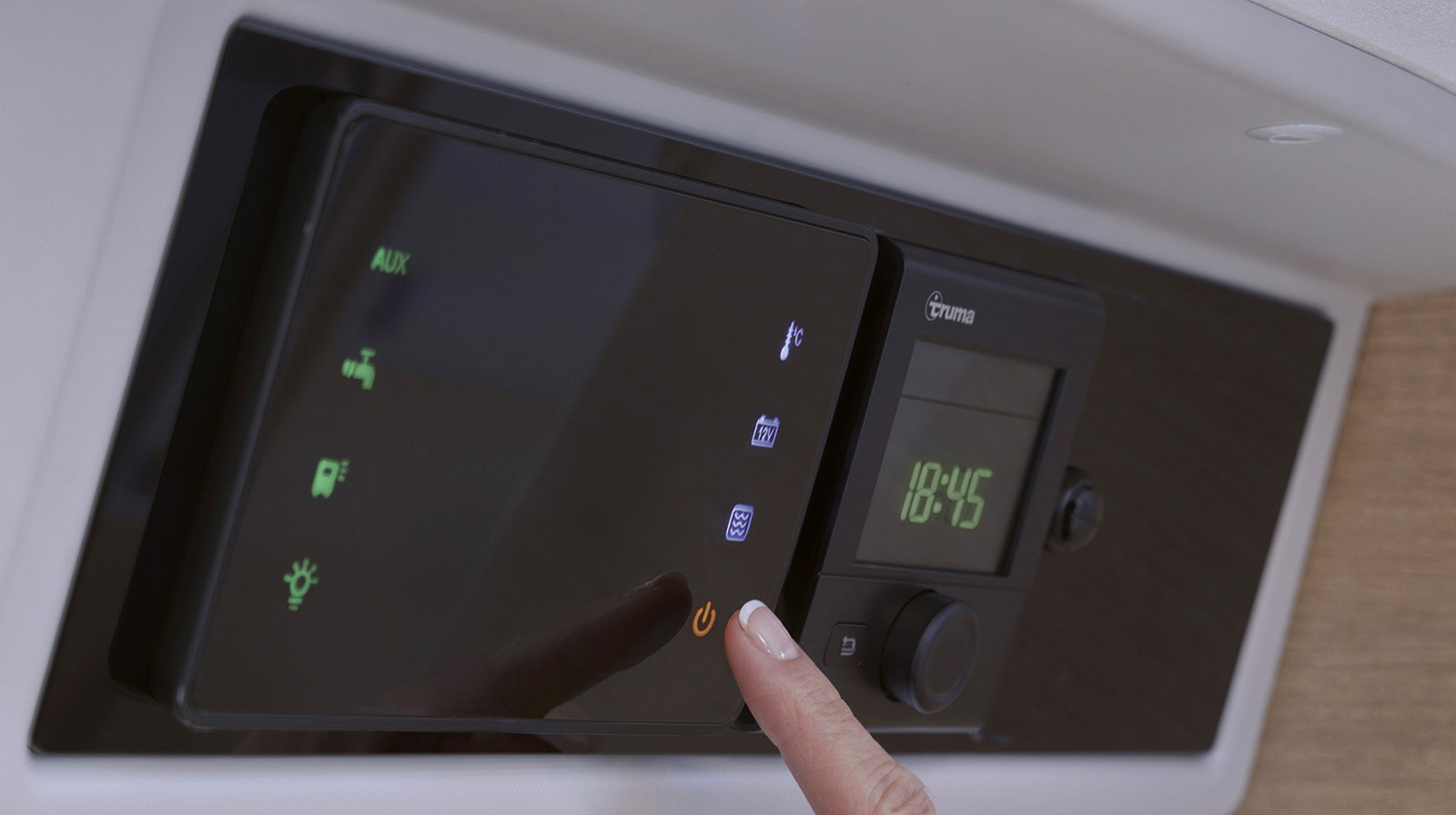

New digital control panel

Anti-crash system, for driving with gas heating on

Pre-cabling for solar panel and reversing camera

3-point retractable safety belts in living area

USB outlets in living room / bedroom

External shower with hot and cold water

Living room speaker for greater sound quality when driving and parked

RAPIDO VAN PACK (OPTIONAL)

Passenger's airbag

Cruise control with limiter

ESC with ASR (traction control), ROM (roll over mitigation) and hill start assistance

Manual caair conditioning

Height-adjustable and swivelling comfort caseats with

2 armrests

Front bumper painting, bodywork colour

Duo Control automatic gas inverter

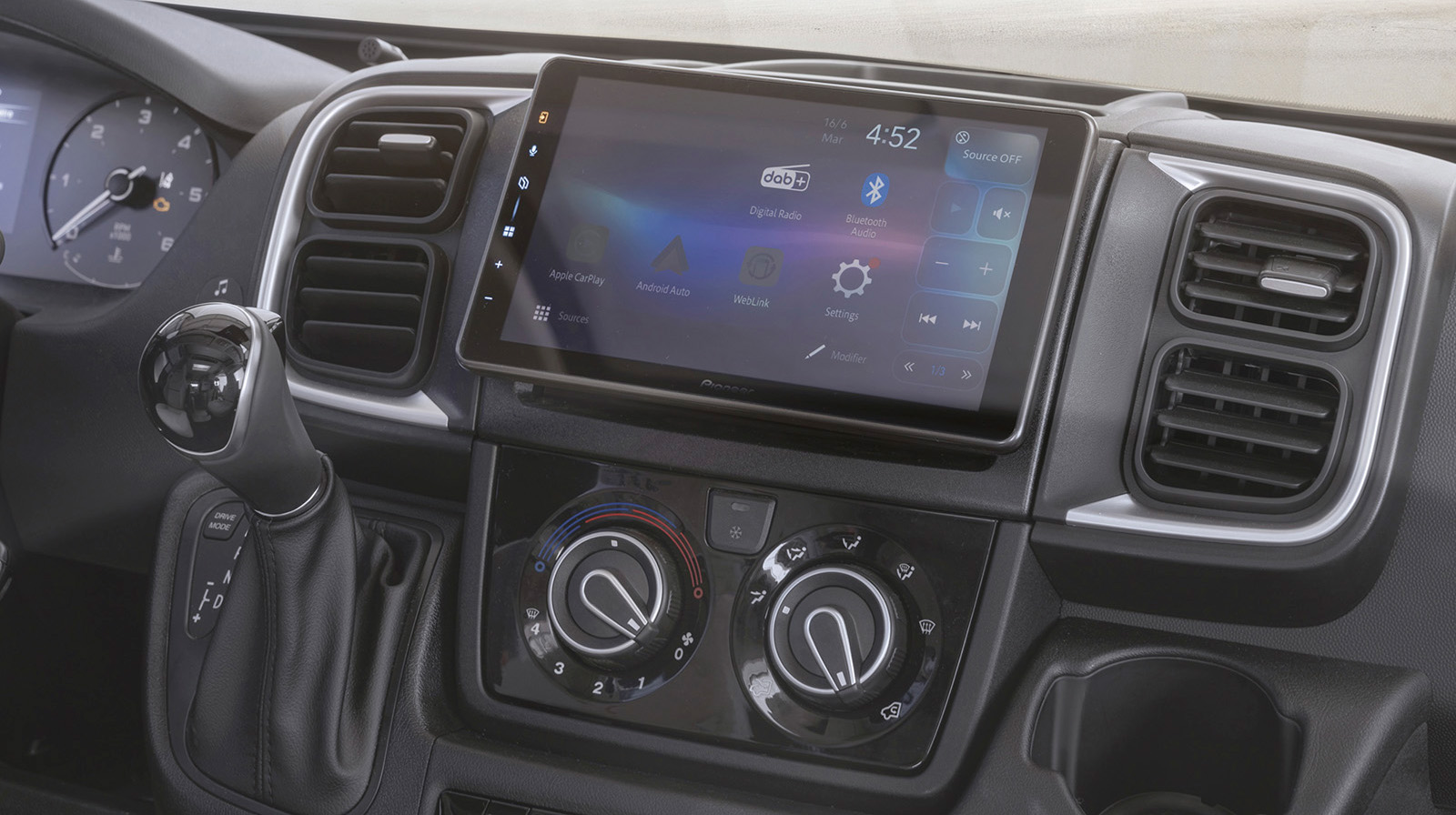

KENWOOD® USB car radio with Bluetooth®

RIGHT HAND DRIVE SPECIAL PACK (OPTIONAL)

Traction+ with Hill Descent Control

Leather steering wheel and gear knob

KENWOOD® radio controls on steering wheel

Chrome-ringed instruments

Living area and cab carpet kit

Black Piano style dashboard

Grey aluminium metallic pain

Living area door mosquito screen

20-litre oven with grill (V55, V68)

18-litre oven no grill (V62)

Furniture

CASTELLO V55

CASTELLO

ÉLÉGANCE V55

ÉLÉGANCE

upholstery

standard

DENVER

optional

DETROIT MANCHESTER MONTREAL
